125KHz LF RFID Bluetooth Reader — Scanning & UID

Unit Price: USD 41.14-68.36
MOQ: 1 unit
Model Number: R58 Series
Colour: Black / White
Material: ABS
Product Size: 90×50×22mm

Compact 125KHz LF RFID Bluetooth reader with built-in 1D/2D scanner, driver-free pairing and configurable UID output.

Email Us

Email us for a faster response.

Send Inquiry

Fill out the inquiry form.

Descriptions
Product Videos
Downloads
Price Quote
Product Reviews

Descriptions

125KHz LF RFID Bluetooth Reader — Scanning & UID

The 125KHz LF RFID Bluetooth Reader — Scanning & UID is positioned for the intended 125KHz LF RFID Readers application. It provides reliable identification and practical integration with the surrounding hardware and software.

How It Fits the Application

In a practical deployment, the product can support access control, enrollment, inventory capture or other controlled identification points. Its value comes from fitting the identification or interaction step into a repeatable operating process rather than functioning as an isolated component.

Selection and Project Configuration

Before ordering, review frequency or barcode type, supported credentials, output interface, protocol, power supply, cable distance and host-system compatibility. The final choice should also reflect mounting position, enclosure rating, nearby metal, electrical noise and the required indoor or outdoor protection. Confirm the controller, sample credential and communication format before volume deployment.

Model	Mode	Frequency	Protocol	Supported chips	Support 1D/2D Barcode	Unit Price (USD)
R58B	×	×	×	×	√	USD 39.09-44.26
R58D	R/O	125KHz	ISO18000-2	TK4100 EM4200 etc	×	USD 42.34-47.83
R58C	R/O	13.56MHz	ISO14443A	FM11RF08 Mifare S50 etc	×	USD 45.60-51.40
R58H	R/W	915MHz	ISO18000-6C	Alien H9 UCODE 9 etc	×	USD 63.51-71.04

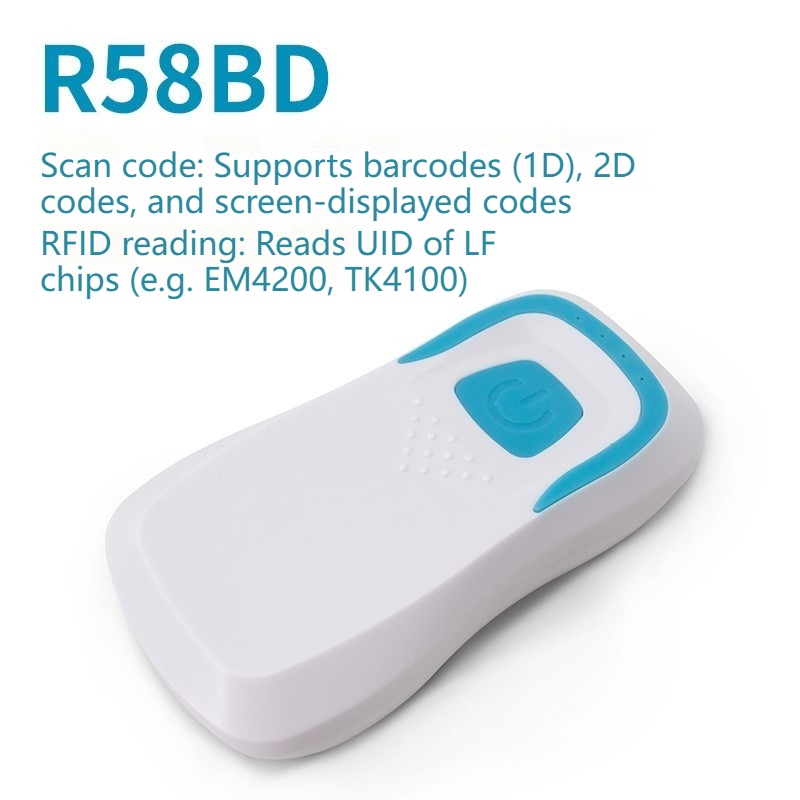

R58BD	R/O	125KHz	ISO18000-2	TK4100 EM4200 etc	√	USD 48.86-54.97
R58BC	R/O	13.56MHz	ISO14443A	FM11RF08 Mifare S50 etc	√	USD 52.11-58.54

Product Name	R58 Series RFID Reader with 1D/2D Barcode Scanner
Working frequency	125KHz, 13.56MHz, 915MHz
Operating Voltage	5V
Operating current	100mA
Anti-static interference	±2.5KV

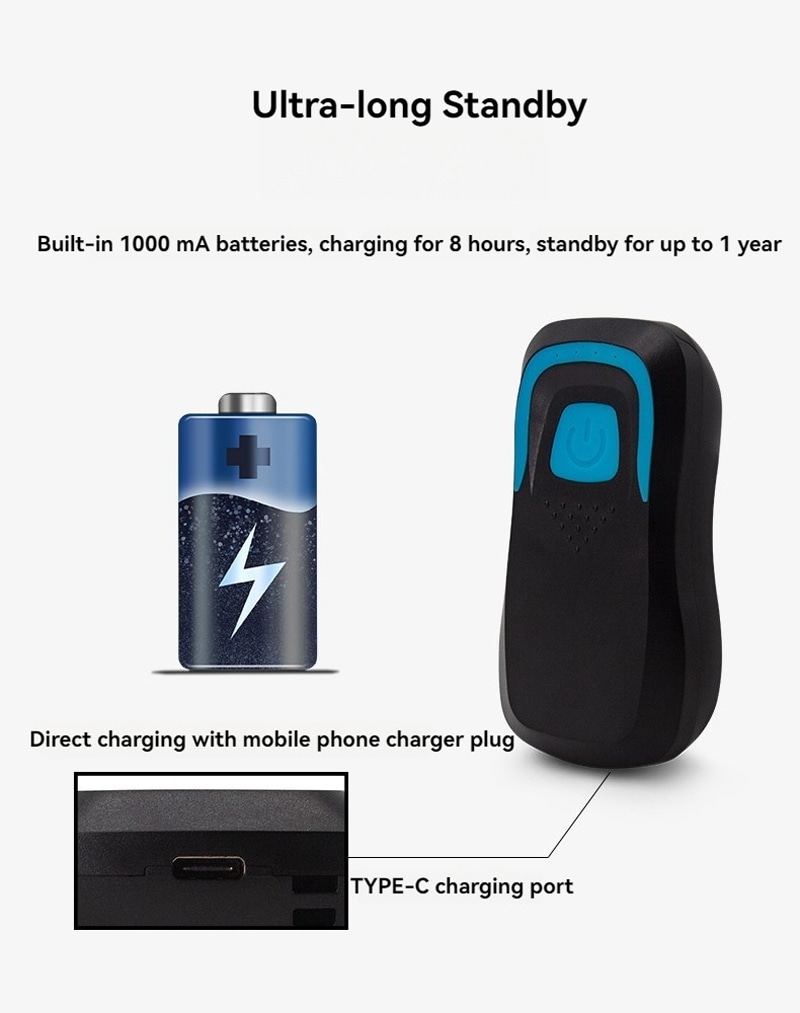

Battery capacity	1000mA/h
Reading distance	20-80mm
Reading speed	0.1s
Reading interval	0.5S
reading rate	106K/Bit
Reading time	＜100ms
Barcode type	1D/2D codes and screen-displayed codes
Communication method	Bluetooth, 2.4G wireless
Operating temperature	-20℃~70℃
Operating humidity	0%-95%

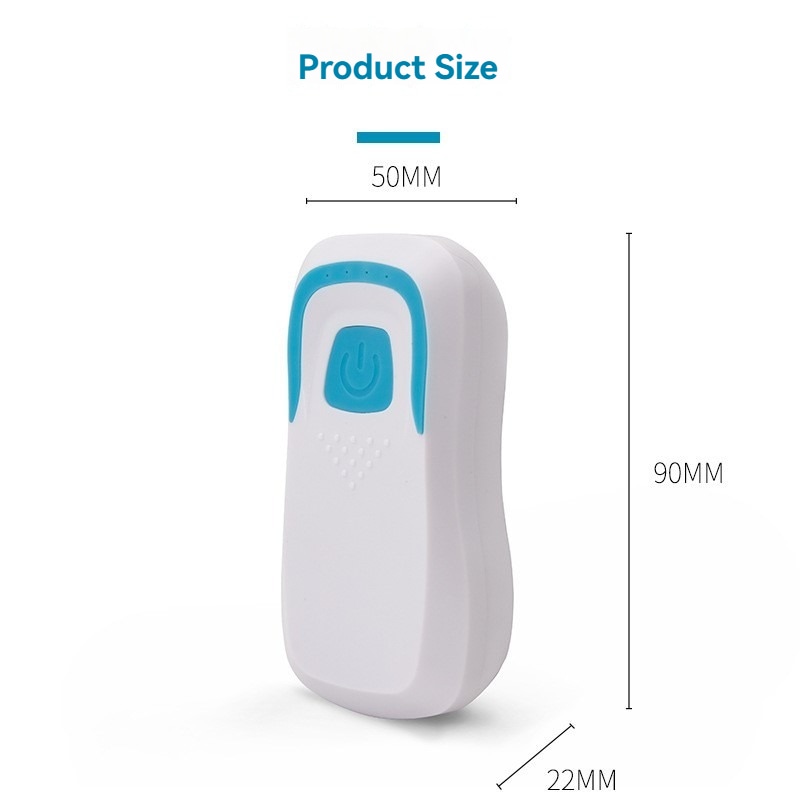

Dimensions	90×50×22mm
Weight	50G
Operating system	WinXP WinCE Win7 Win10 Win11 Linux Android

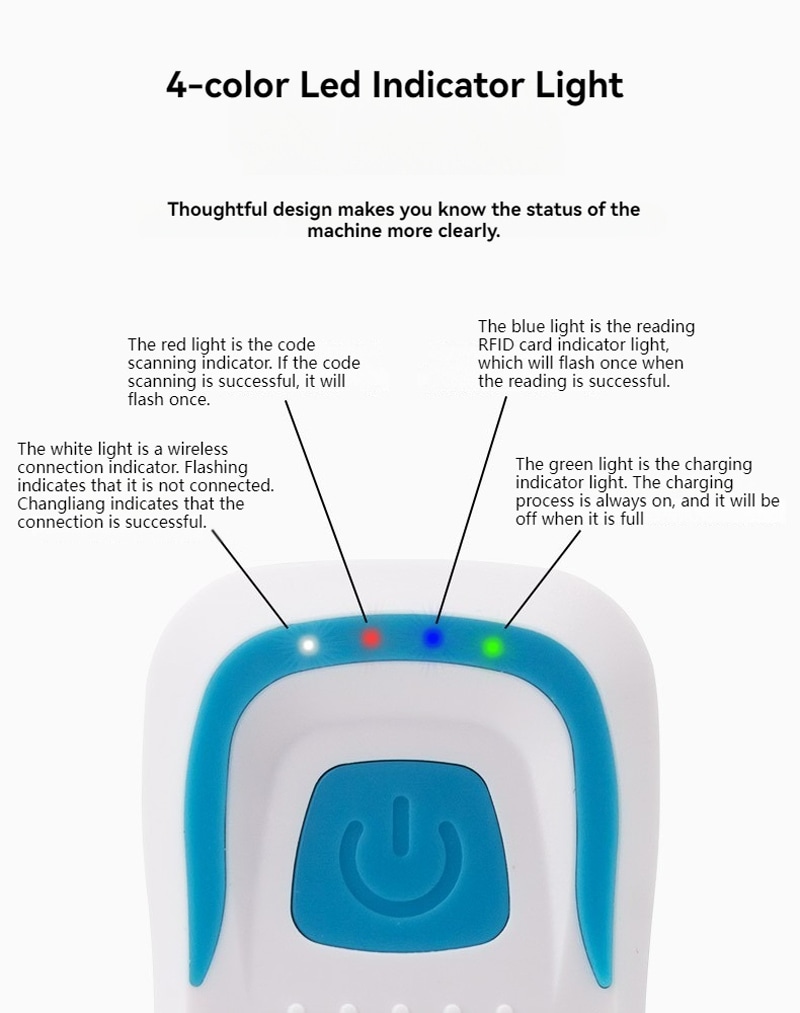

Other	Status indicator: white light for connection status, red light for scanning confirmation, blue light for card reading confirmation, green light for charging reminder, built-in buzzer

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a event check in durable design for 13.56MHz HF RFID Readers applications.

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a plastic finish custom branding for 13.56MHz HF RFID Readers applications.

125KHz LF RFID Bluetooth Reader for Long Standby & UID shown in the description section with a metal surface contactless scanning for 125KHz LF RFID Readers applications.

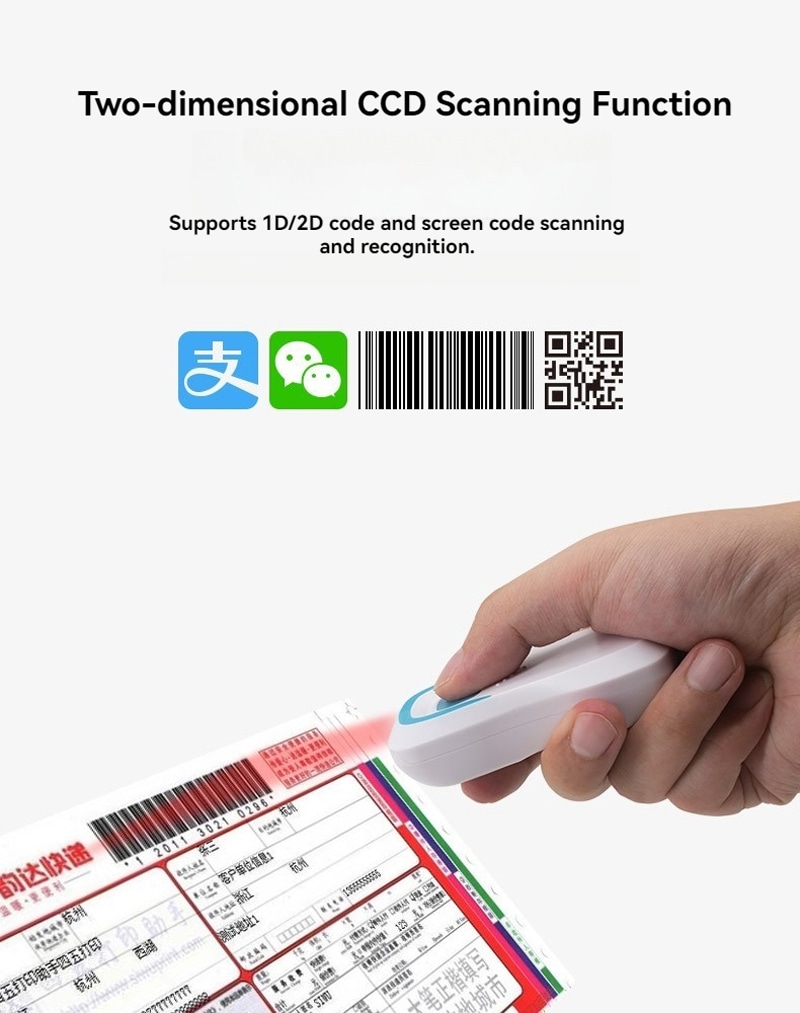

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a event check in contactless scanning for 13.56MHz HF RFID Readers applications.

125KHz LF RFID Bluetooth Reader for Long Standby & UID shown in the description section with a membership program detail view for 125KHz LF RFID Readers applications.

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a plastic finish macro detail for 13.56MHz HF RFID Readers applications.

125KHz LF RFID Bluetooth Reader for Long Standby & UID shown in the description section with a retail packaging for 125KHz LF RFID Readers applications.

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a surface texture secure identification for 13.56MHz HF RFID Readers applications.

125KHz LF RFID Bluetooth Reader for Long Standby & UID shown in the description section with an antenna layout contactless scanning for 125KHz LF RFID Readers applications.

125KHz LF RFID Bluetooth Reader for Long Standby & UID shown in the description section with an edge finish detail view for 125KHz LF RFID Readers applications.

125KHz LF RFID Bluetooth Reader for Long Standby & UID shown in the description section with a retail packaging custom branding for 125KHz LF RFID Readers applications.

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a membership program fast scanning for 13.56MHz HF RFID Readers applications.

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a surface texture macro detail for 13.56MHz HF RFID Readers applications.

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a event check in lifestyle view for 13.56MHz HF RFID Readers applications.

HF RFID reader for fast UID reading & Bluetooth pairing shown in the description section with a metal surface front view for 13.56MHz HF RFID Readers applications.

125KHz LF RFID Bluetooth Reader for Long Standby & UID shown in the description section with a metal surface front view for 125KHz LF RFID Readers applications.

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a back view for 13.56MHz HF RFID Readers applications.

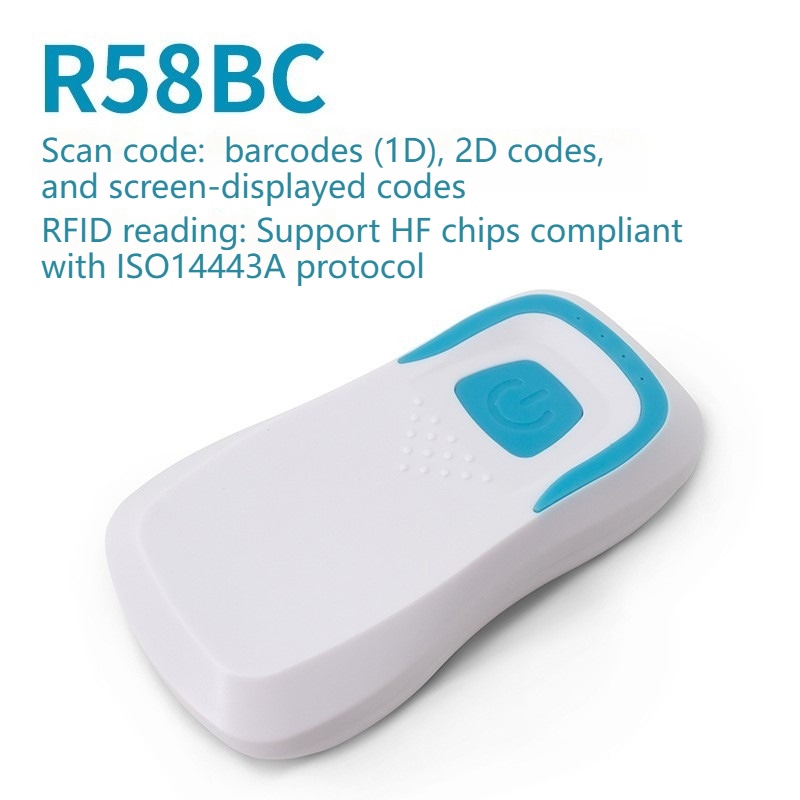

HF RFID Reader with Barcode Scanner & Bluetooth Connectivity shown in the description section with a office branding durable design for 13.56MHz HF RFID Readers applications.
