High Security NFC Lead Seals - 15M One-Off Numbered

RFID Security Seals / RFID smart seals

Seal Tag transponders are ideal for sealing commercial containers – bags, bins or boxes –
to prevent unauthorized access to contents while in storage or during distribution.
Seal Tag units integrate powerful RFID chips with high durability components,
and secure, tamper-evident fasteners.
Access to a sealed container’s contents requires severing a tag’s cable tie or wire loop –
or breaching of the container itself – providing clear evidence of tampering.

UHF Seal Tag closures can be identified from up to 30 ft (15 m),
enabling entire loads of sealed containers to be read as trucks pass through stationary readers.
HF Seal Tags can be identified and updated with handheld readers
and ISO 15693 compatible NFC Type 5 (NFC-V) devices.

Specifications
Integrated, secure fastening device
HF 13.56 MHz version readable with ISO/IEC 15693 or ISO/IEC 14443A compatible devices
Broadband UHF version for worldwide use at 860 to 960 MHz
Fully interoperable, standards compliant
Visually, electrically or digitally tamper evident options
Custom encoding or laser engraving on housing ease

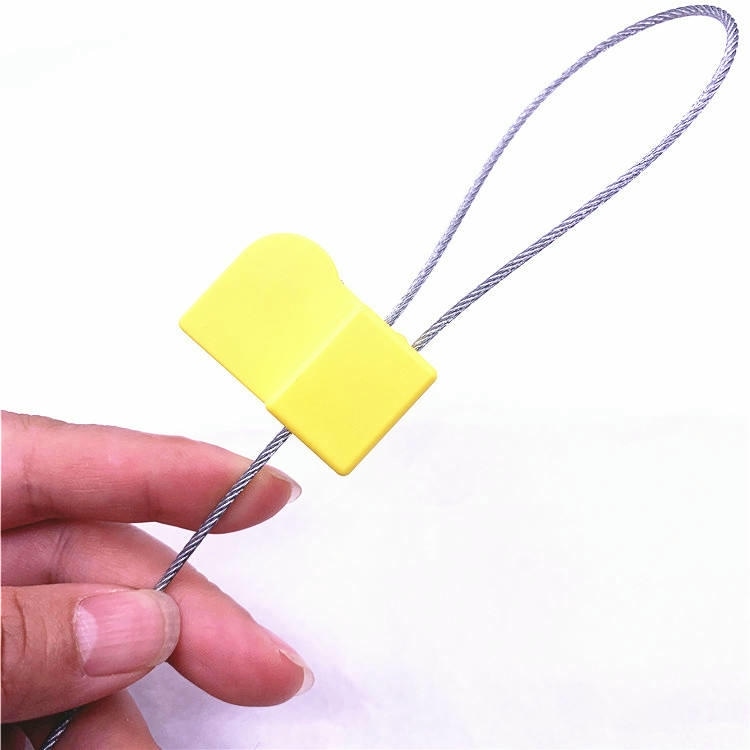

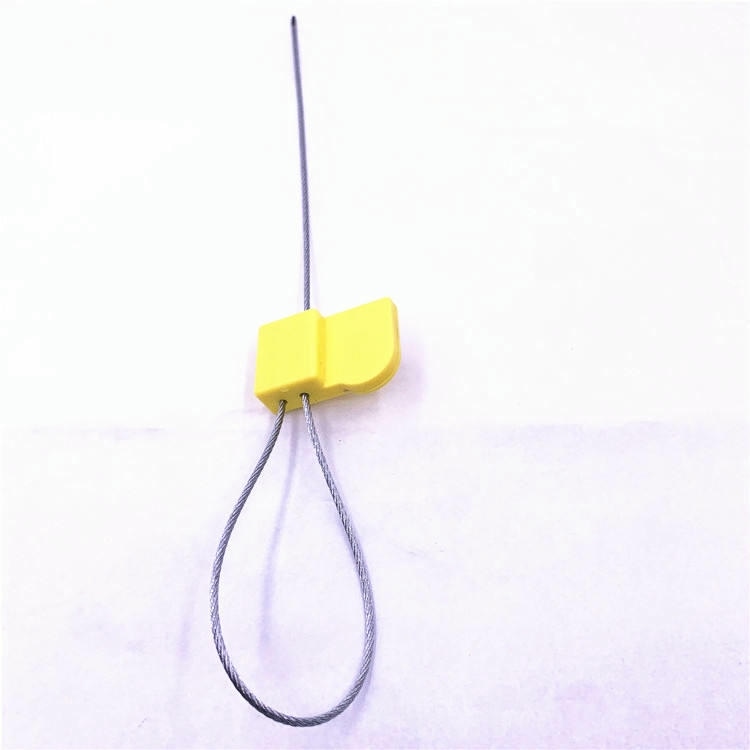

SS3826-1 Dual-Frequency Pull-Tight RFID Seal Overview

Merging the tactile reliability of a traditional numbered metal lock with the intelligence of modern IoT, the SS3826-1 represents the evolution of physical security. At first glance, it looks like a standard industrial pull-tight seal, featuring a robust 38×26mm ABS body encasing a heavy-duty alloy steel locking chamber. Inside this familiar form factor is a dual-frequency RFID core that supports the same operational habits teams already know. Staff apply it exactly like conventional numbered seals—threading the 280mm wire and pulling it tight to achieve a ≥3000N lock—while the system simultaneously enables digital identification aligned with broader RFID Tags deployments.

Digital Twin Tracking Across Gates and Last-Mile Checks

The “digital twin” capability comes from support for both HF (13.56 MHz) and UHF (860–960 MHz) bands. The UHF component is built for automated capture at logistics hubs, where gantry readers can register seal events at distances up to 15 meters, enabling fast, hands-free processing. Meanwhile, the HF/NFC component expands accessibility for field verification: inspectors, drivers, or receiving teams can use NFC-enabled smartphones to confirm authenticity and status without changing workflow. In mixed ecosystems where identity may also be issued through RFID Cards, this dual-band approach helps standardize verification behavior across people, sites, and sealed assets.

One-Off Locking Logic and Anti-Substitution Audit Control

Security is enforced through a strict one-off usage protocol. The locking mechanism is irreversible; once tightened, the wire cannot be loosened. Accessing the container requires cutting the wire, leaving immediate, unambiguous tamper evidence. To reduce substitution fraud—where a compromised seal is replaced with a new one—we synchronize the laser-engraved serial number on the body with the encoded UID in the chip. This makes the physical number and digital ID inseparable during audits and handovers, protecting chain-of-custody integrity in the same way fleet and container programs are often reinforced with identifiers such as RFID Car Tags or container-mounted tracking points.

Operational Fit for High-Volume Logistics and Asset Programs

The compact 38×26mm body reduces snag risk in dense latch areas while maintaining industrial locking strength. The adjustable pull-tight design eliminates slack, which is critical on irregular handles, bars, and valve assemblies where fixed-length seals can leave a prying gap. For operators running diverse asset programs—such as municipal collection workflows that rely on RFID Waste Bin Tags—the SS3826-1 adds a complementary access-integrity layer, allowing organizations to connect “asset identity” with “access events” using the same RFID infrastructure.

FAQ

Q1: How does this seal support a “Bring Your Own Device” (BYOD) policy?

A1: Because it includes an NFC (HF) chip, authorized personnel can use standard NFC-enabled smartphones to scan the seal for verification or status confirmation. This reduces the need to issue dedicated handheld readers to every role involved in last-mile checks.

Q2: Does the metal locking mechanism interfere with the RFID signal?

A2: No. The antenna layout is engineered to work within the plastic housing around the metal core, allowing the metal to provide strength without shielding the RF signal and preserving reliable UHF readability.

Q3: What is the benefit of the pull-tight design?

A3: It allows the seal to fit different latch geometries securely. By tightening the wire until it is fully snug, it removes gaps that could otherwise be used to manipulate the locking point or introduce pry tools.

Q4: Can we customize the laser numbering format?

A4: Yes. The body can be laser engraved with custom letter/number formats and barcodes. Many programs add region or route prefixes to improve visual sorting while keeping the engraved serial aligned with the digital ID for audit consistency.
